On axis @ 1m and 2.83v 30 degrees, 60 degrees
Full range setup 2b 32 second sweep
DATE: 10-05-1995 TIME: 10:27:49
Legend
On axis
30o off axis
60o off axis

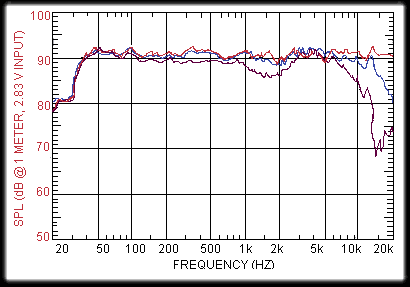

This graph shows the approaching straight-line dispersion for the new Waveform Mach17 loudspeaker. This graph however, displays a loss of energy shortly after 35Hz. This is due to the fact that the prototype that was tested at NRC only had 9db of boost @ 35Hz. We now have in the production crossover, 14dB of boost @ 22Hz. This means the speaker has a lot more bass energy and the user will get a solid 20Hz signal in his listening room, when placed with the help of the owner's manual instructions. This is the true meaning of full range. Frequency response is measured at NRC Canada. Sensitivity represents measured response in an anechoic chamber.
